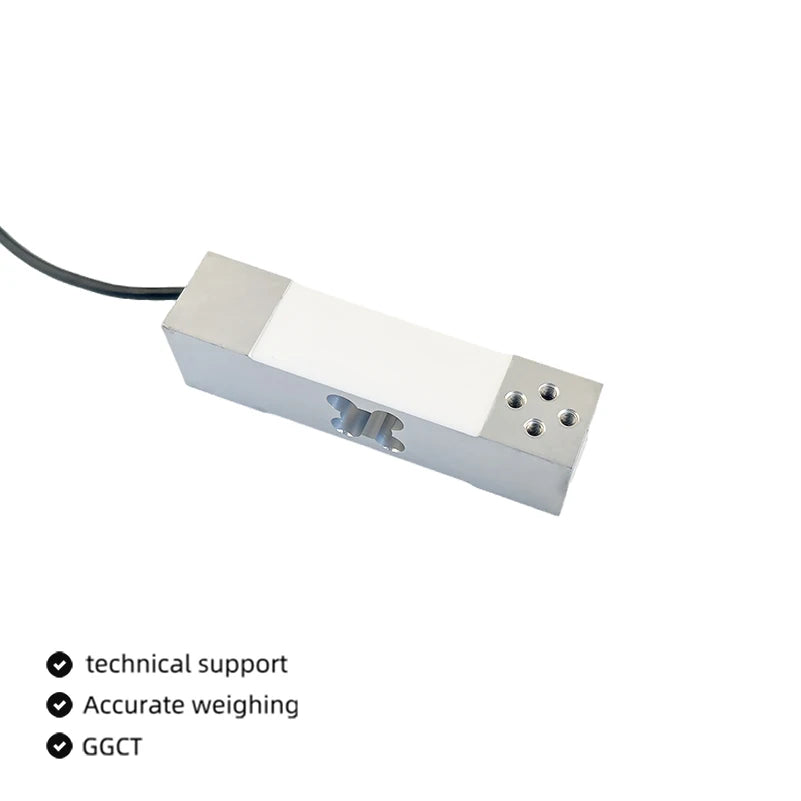

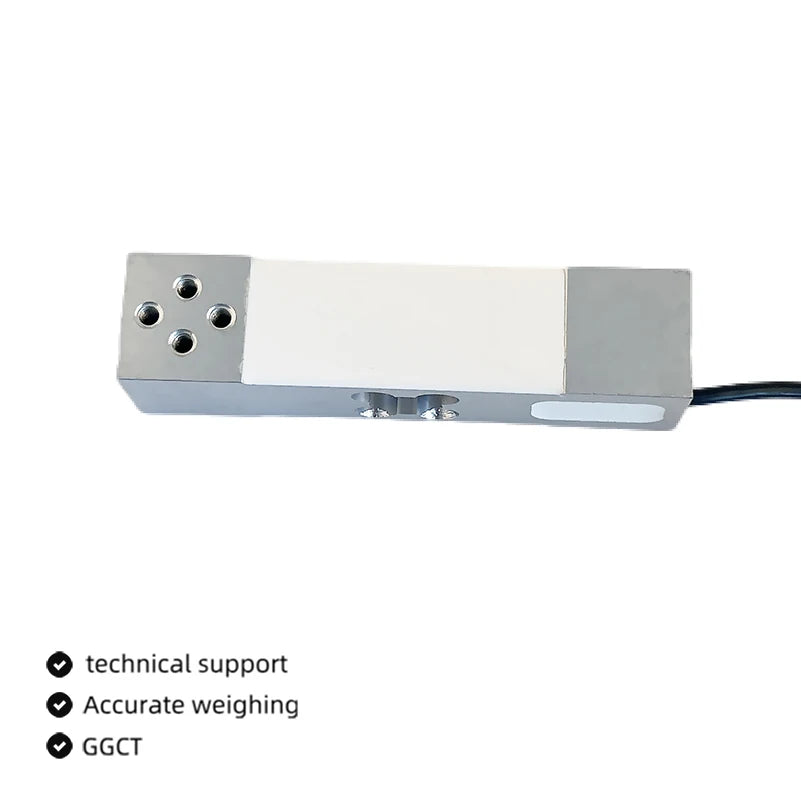

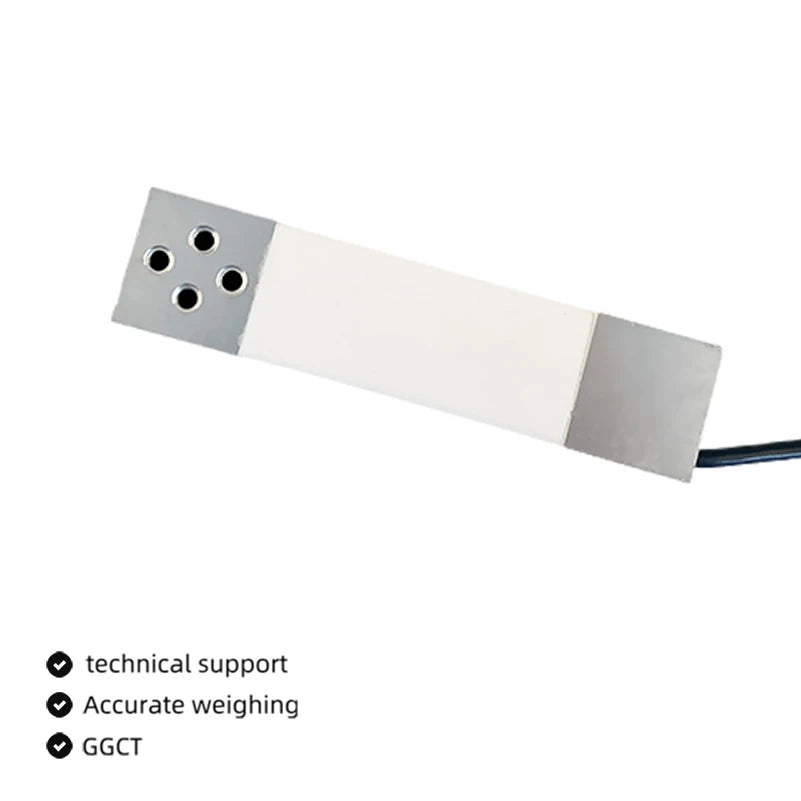

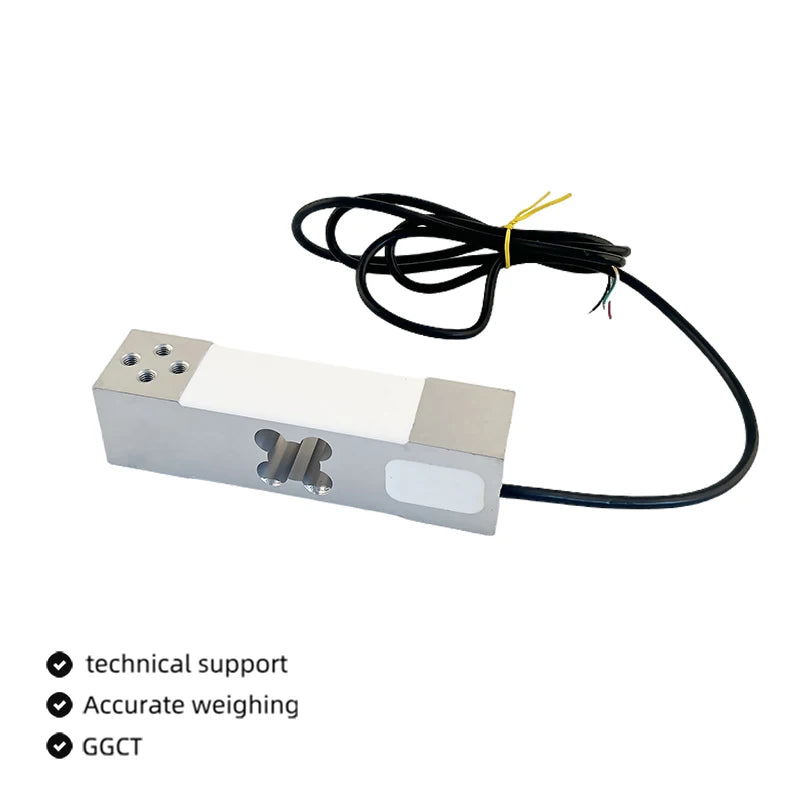

150MM 15CM Single Point Load Cell HighPrecision Cantilever Weighing Sensor LoadCell Durable Aluminum Alloy Construction

Technicalparameters

Rated load

30-500kg

Precision

C2&C3

Comprehensive error

±0.03.±0.017 %F.S

Rated output

2.0±0.2 mV/V

Zero balanc

±1.0%F.S

Input resistance

405±6Ω

Ouiput resistance

350±3Ω

Insulationresistance

≥5000MΩ(50VDC)

Use temp.range

-20-55℃

Excitation voltage

9-12DC

Safe overioad

120%

Uitimate overioad

150%

Defend grade

IP65

Materlal

Aluminlum alloy
