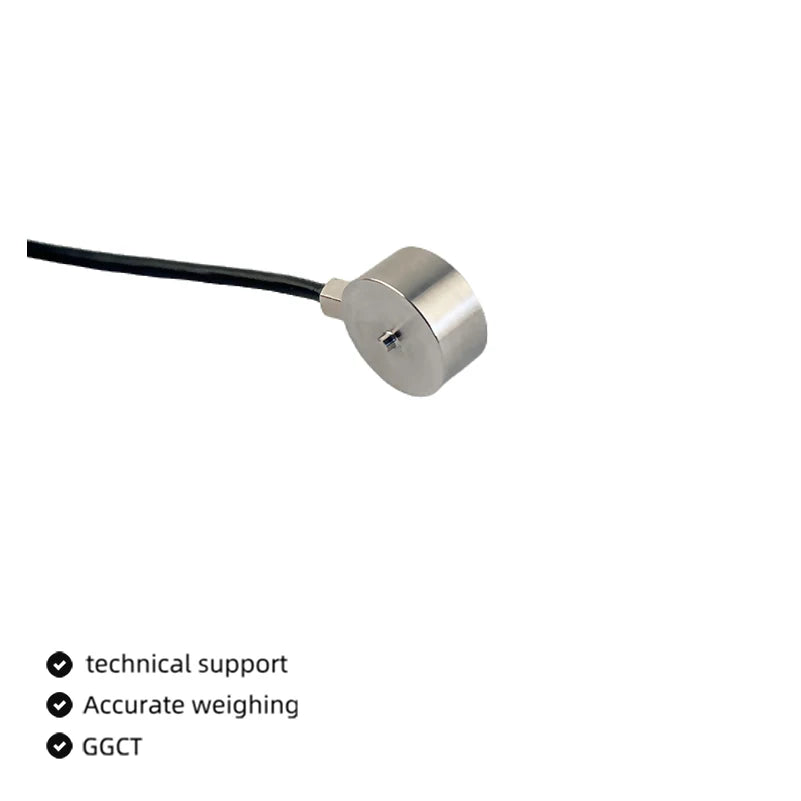

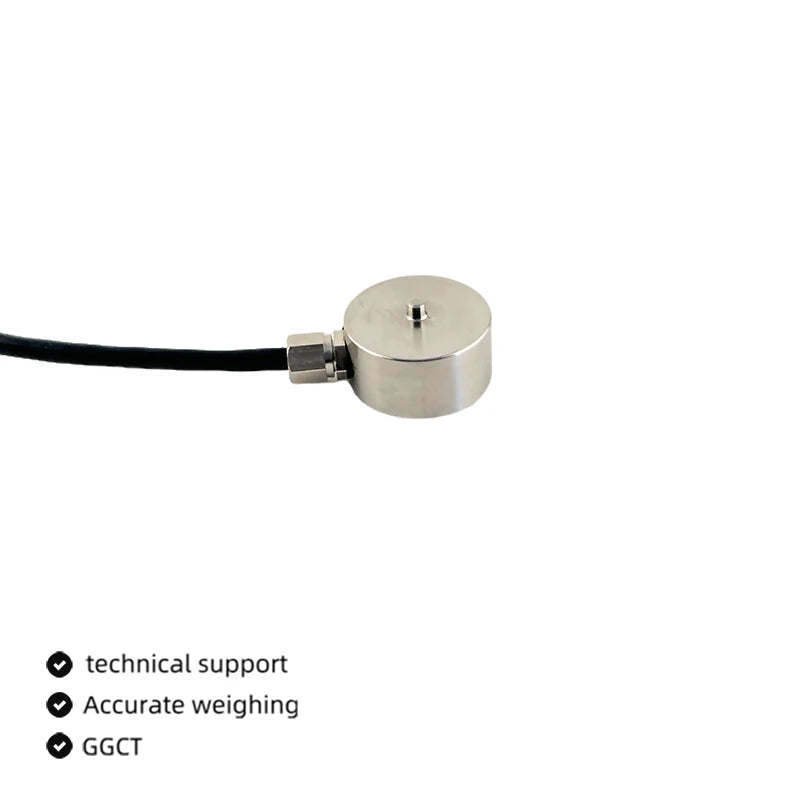

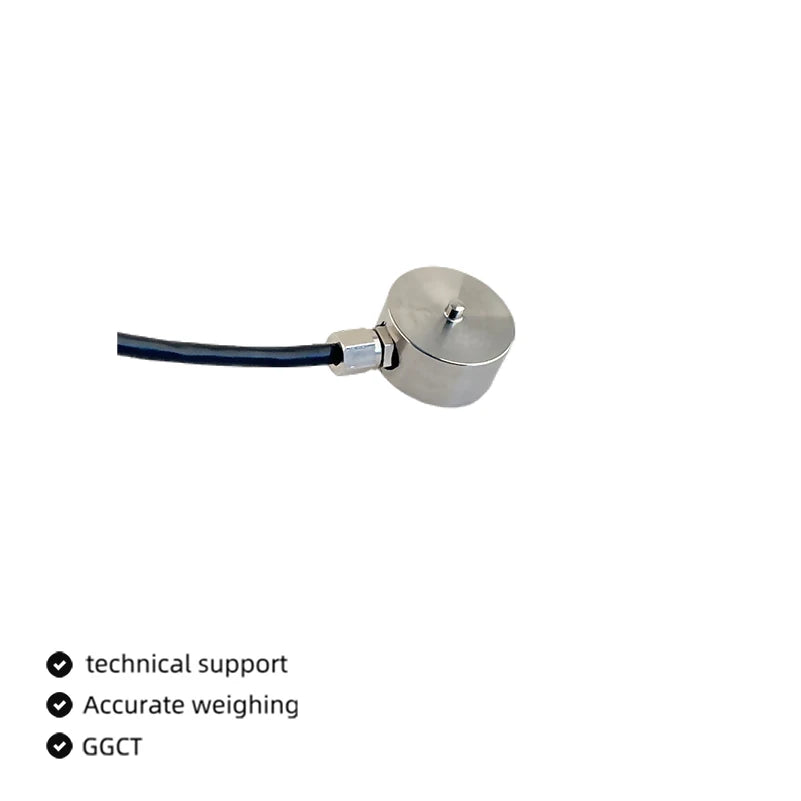

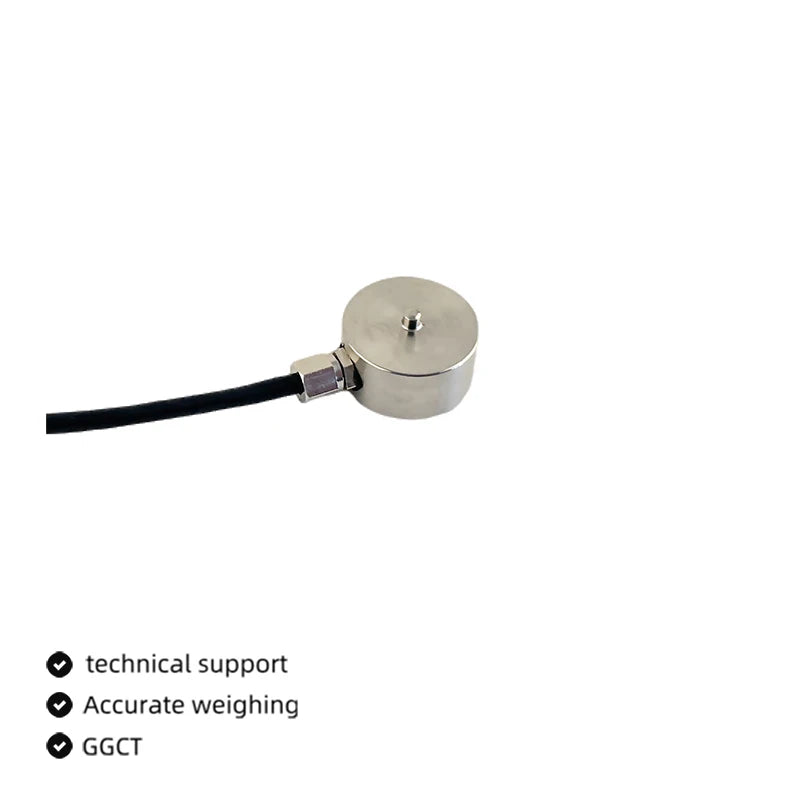

20 mm 2 cm MIni 5/10/20/30/50kg Micro Load Cell Tension Compression Force Sensor for Weight Pressure Column Robotic Touch Sense
20 mm 2 cm MIni 5/10/20/30/50kg Micro Load Cell Tension Compression Force Sensor for Weight Pressure Column Robotic Touch Sense
Regular price
$34.43 USD
Regular price
$0.00 USD
Sale price
$34.43 USD
Unit price
per
Couldn't load pickup availability
| TechnicalParameter |
|
| Rated load |
10kg-1000kg |
| 0utput sensitivity |
1.5±10% mV/V |
| Non-linearity |
±0.5 %F.S |
| Lag error |
±0.5 %F.S |
| Repeatability |
±0.3 %F.S |
| Creep |
±0.3 %F.S |
| Zero temperature coefficient |
±0.1 %F.S/10℃ |
| Sensitivity temperature coefficient |
±0.1 %F.S/10℃ |
| Input resistance |
1000±30Ω |
| 0utput resistance |
1000+5Ω |
| Working temperature |
-20℃-70℃ |
| Safe overload |
150 %F.S |
| Insulation resistance |
>2000M2 |
| Incentive voltage |
5V-12V |
| Protection class |
IP66 |
| Material |
stainless steel |
