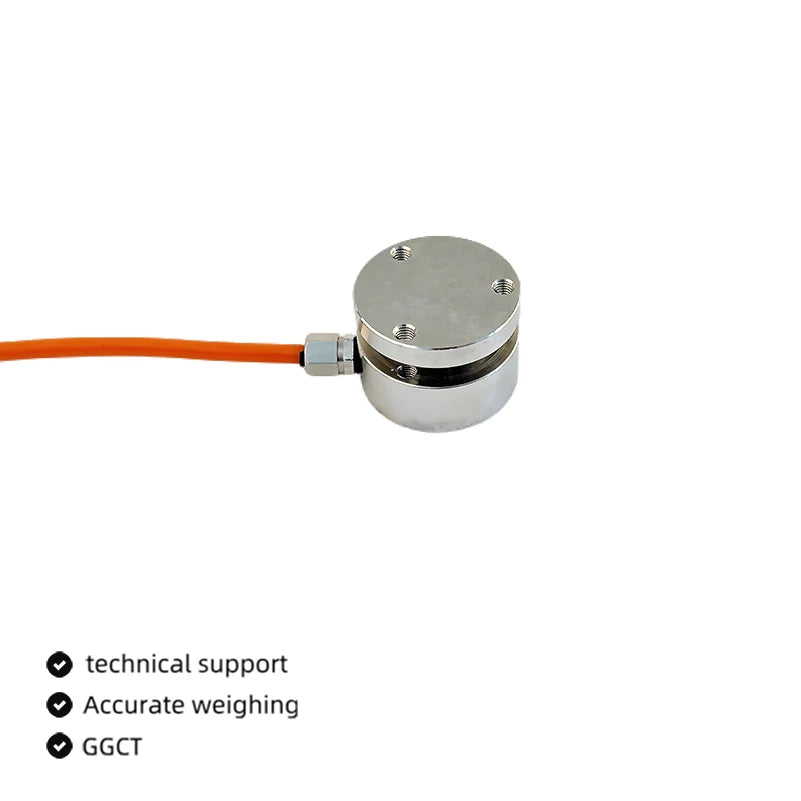

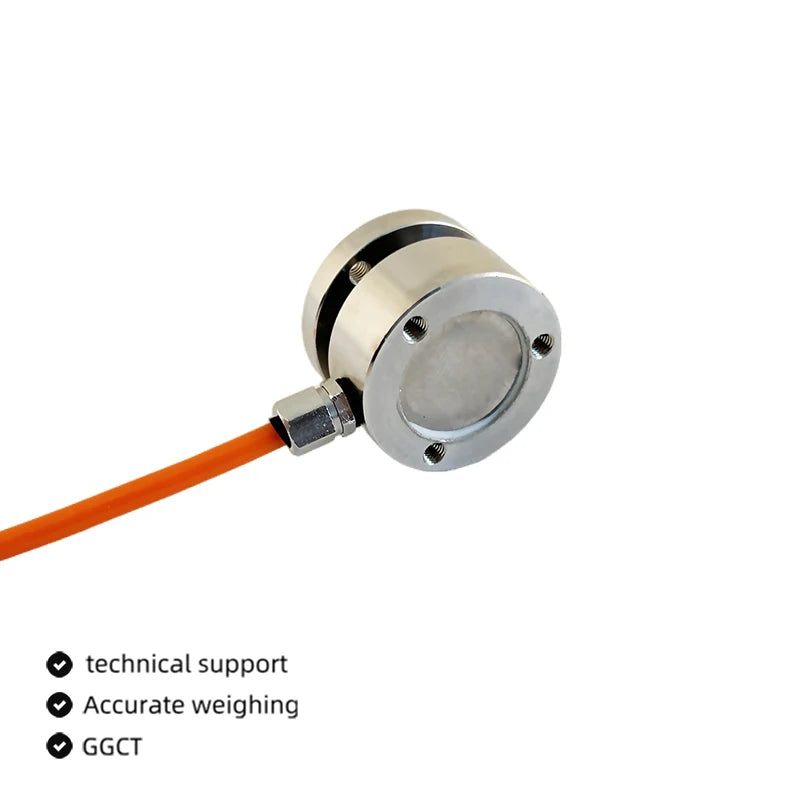

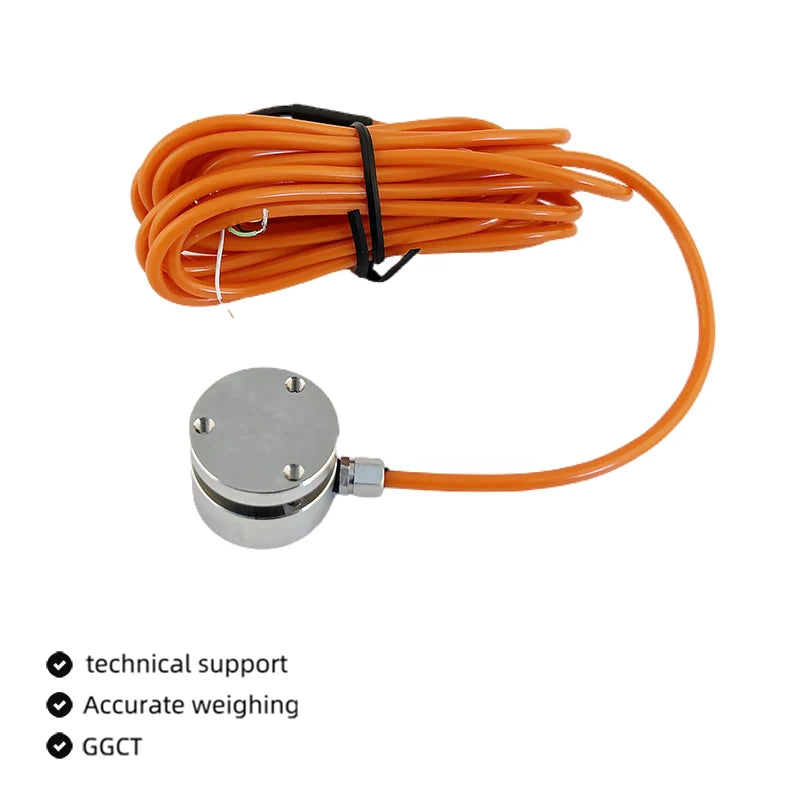

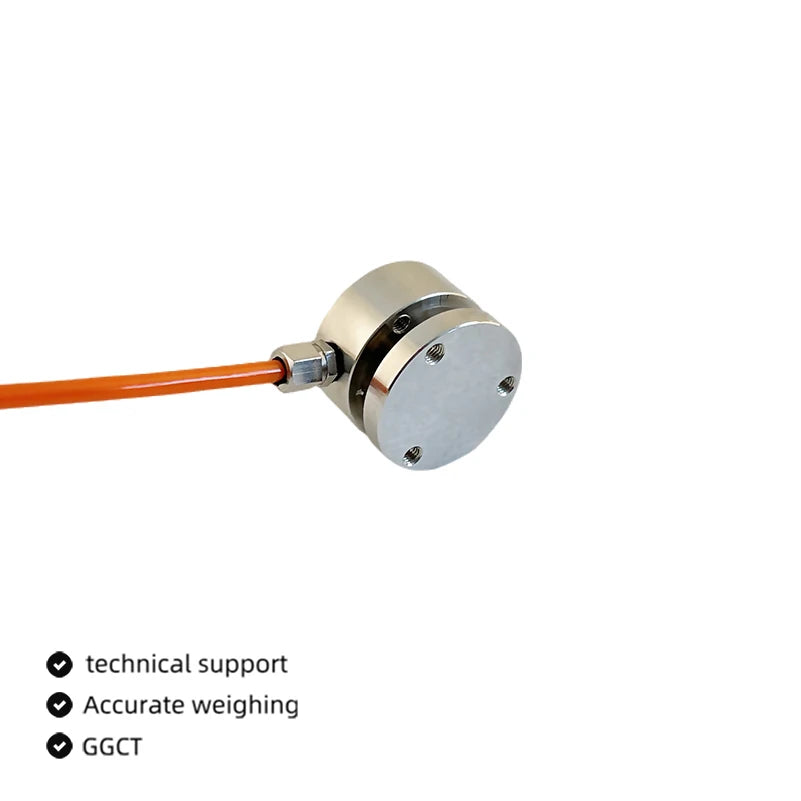

25mm High-Precision Inline Load Cell Miniature Compression and Tension Load Cell for Impact Force Measurement Industrial Testing

Technicalparameter

Rated load

10kg-5t

0utput sensitivity

1.5-2.0±0.05 mV/V

Non-linearity

±0.3-±0.5 %F.S

Lag error

±0.3 %F.S

Repeatability

±0.3 %F.S

Creep

±0.1 %F.S

Zero temperature coefficient

±0.1%F.S/10℃

Sensitivity temperature coefficient

±0.1%F.S/10℃

Input resistance

380±30Ω

0utput resistance

350±5Ω

Working temperature

-20℃~+70℃

Safe overload

120 %F.S

Insulation resistance

≥2000MQ(100VDC)

Incentive voltage

5V~12V

Protectionclass

IP66

Material

Alloy steel, stainless steel
