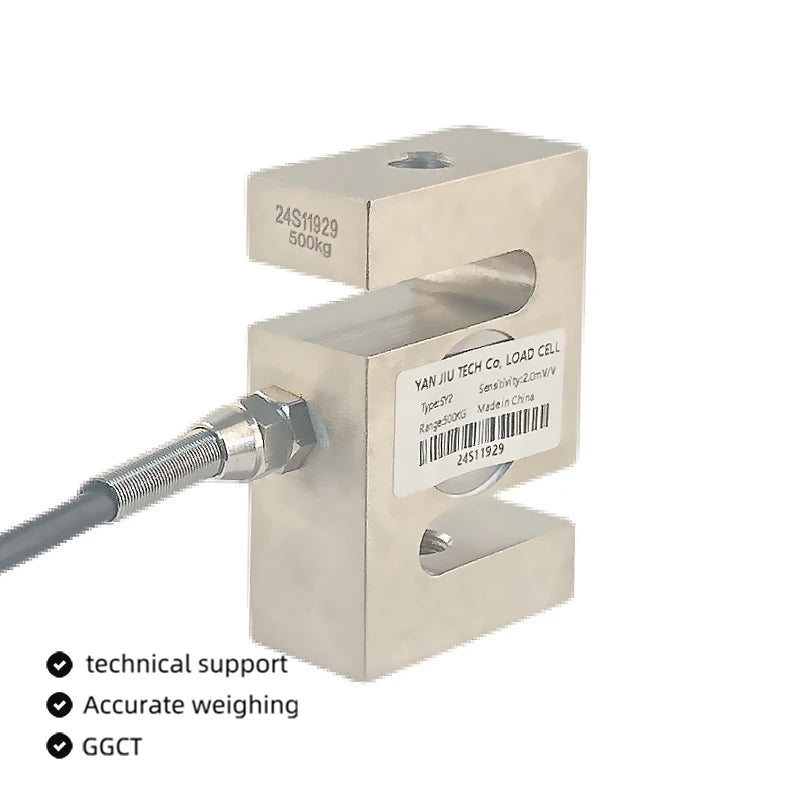

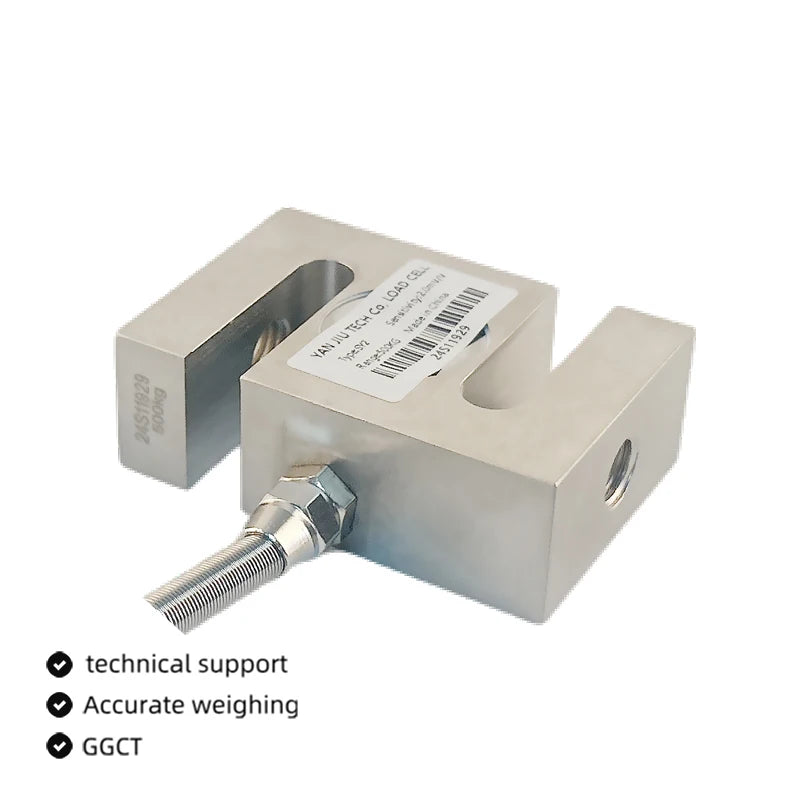

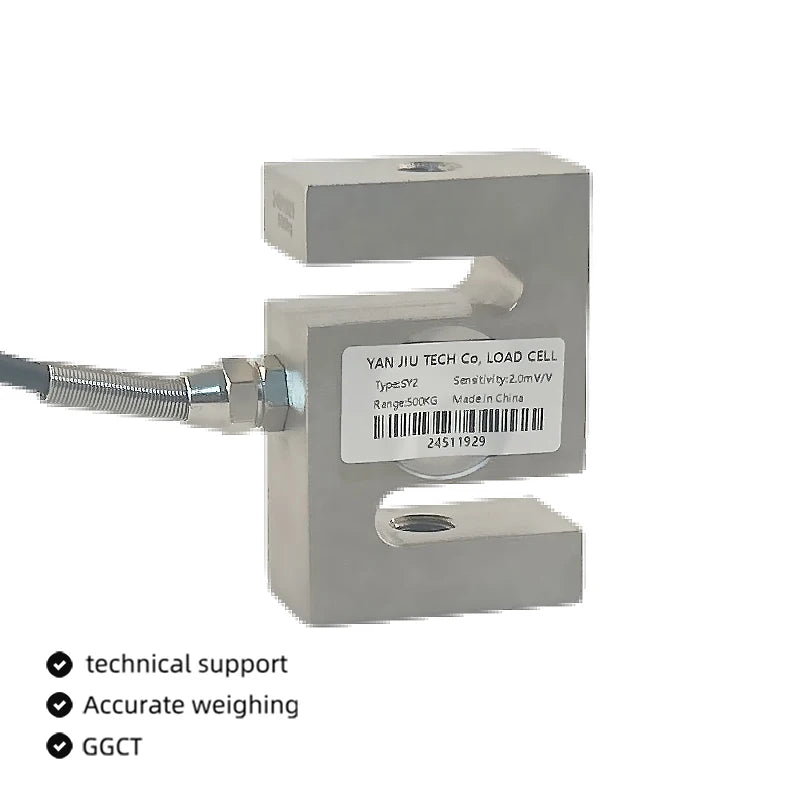

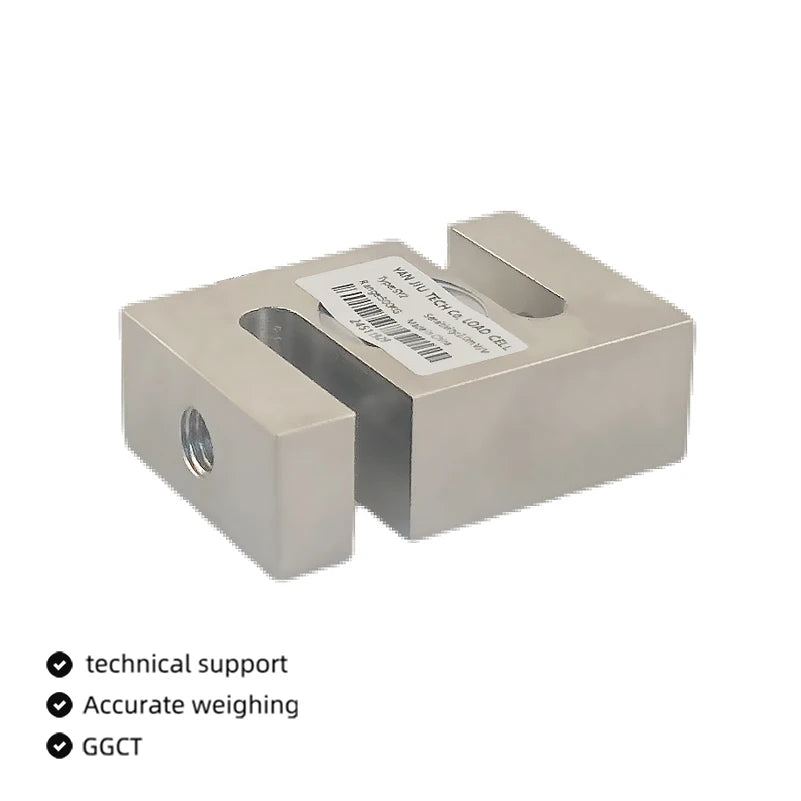

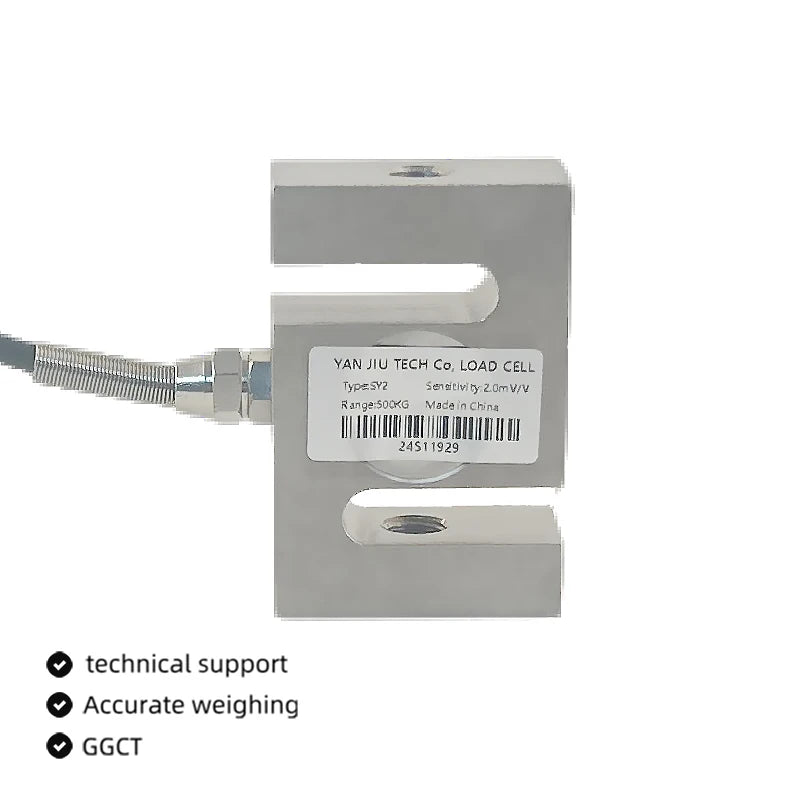

300Kg 500kg 1000kg 1t 2t 5t 10t S Type High Accuracy Pull Pressure Weight Sensor Load Cell for Small Scale
300Kg 500kg 1000kg 1t 2t 5t 10t S Type High Accuracy Pull Pressure Weight Sensor Load Cell for Small Scale
Regular price
$37.76 USD
Regular price
$0.00 USD
Sale price
$37.76 USD
Unit price
per
Couldn't load pickup availability
| Technical parameters |
|
| Rated load |
5kg~500kg |
| Qutput sensitivity |
2.0±0.05 mV/V |
| Non-linearity |
±0.03~±0.05%F.S |
| Lag error |
±0.03%F.S |
| Repeatability |
±0.03%F.S |
| Creep |
±0.03%F.S |
| Zero temperature coefficient |
±0.05%F.S/10℃ |
| Sensitivity temperature coefficient |
±0.05%F.S/10℃ |
| Input resistance |
380±30Ω |
| 0utput resistance |
350+5Ω |
| 0perating temperature |
-20℃~+70℃ |
| Safe overload |
150 %F.S |
| Insulation resistance |
≥2000MΩ |
| Incentive voltage |
5V~12V |
| Protection class |
IP66、IP66 |
