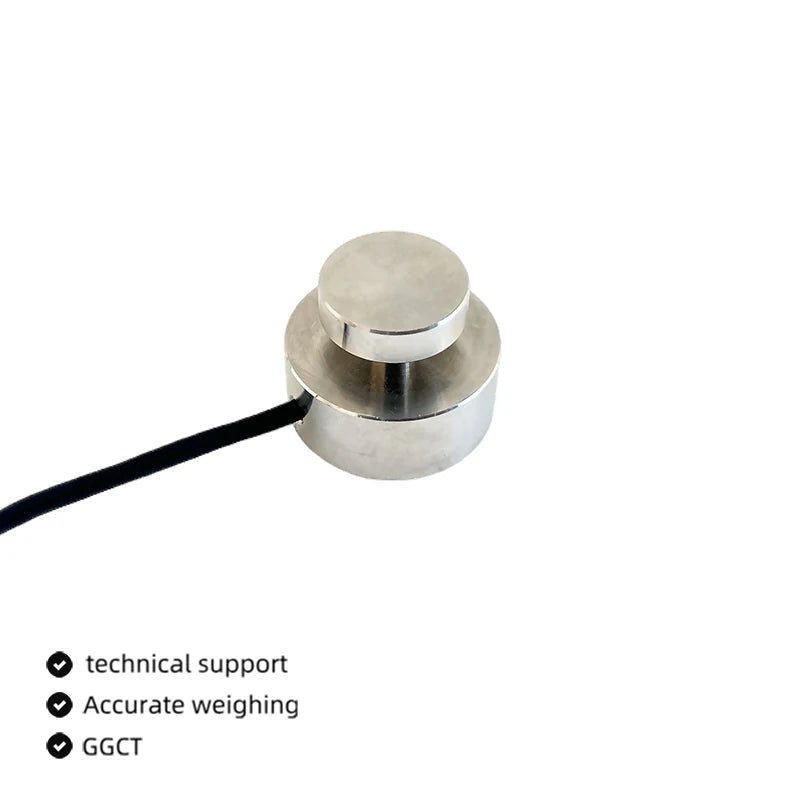

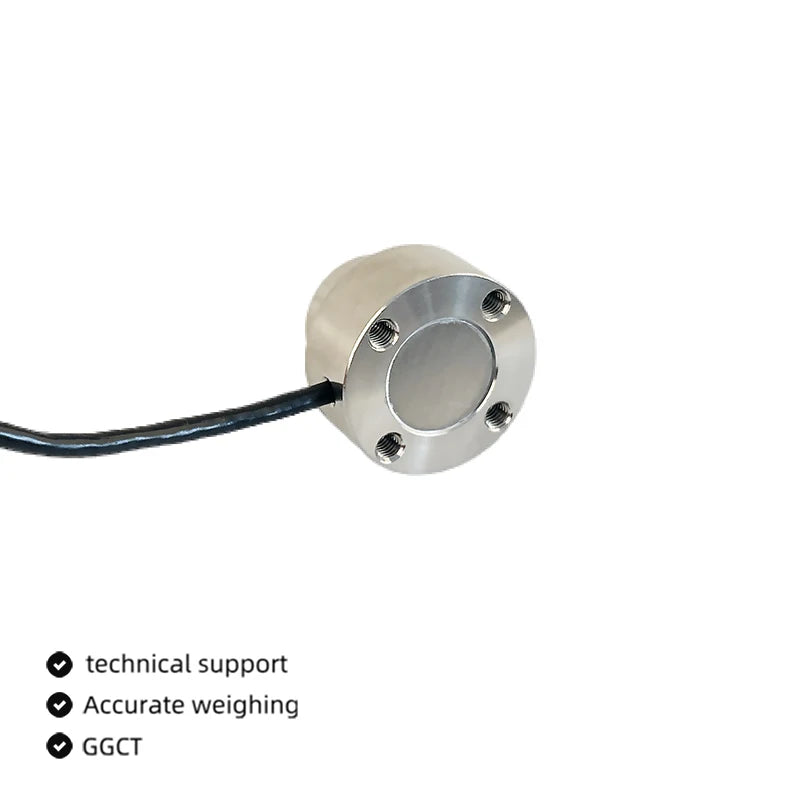

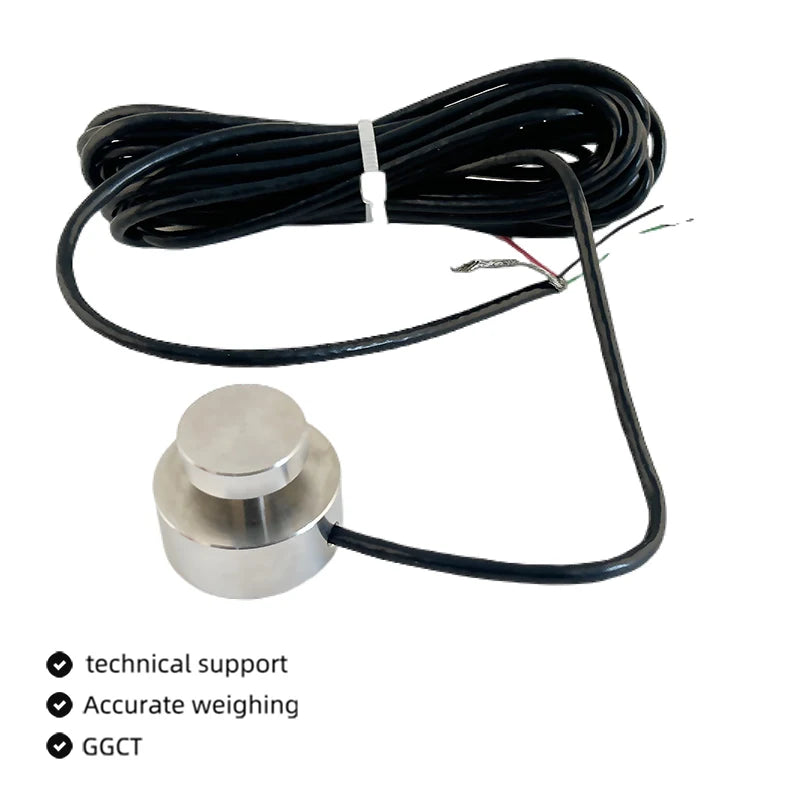

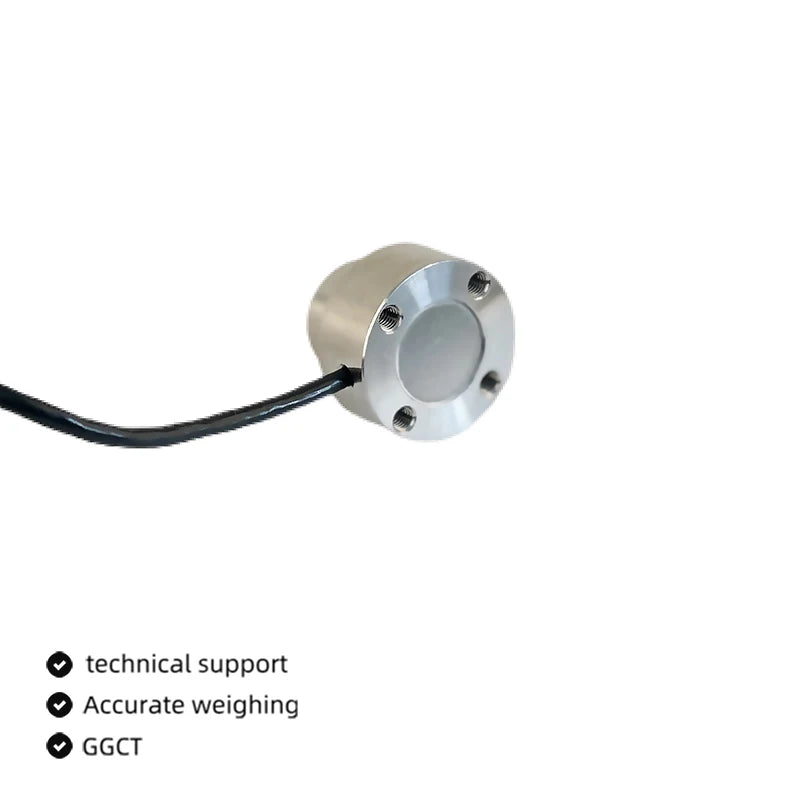

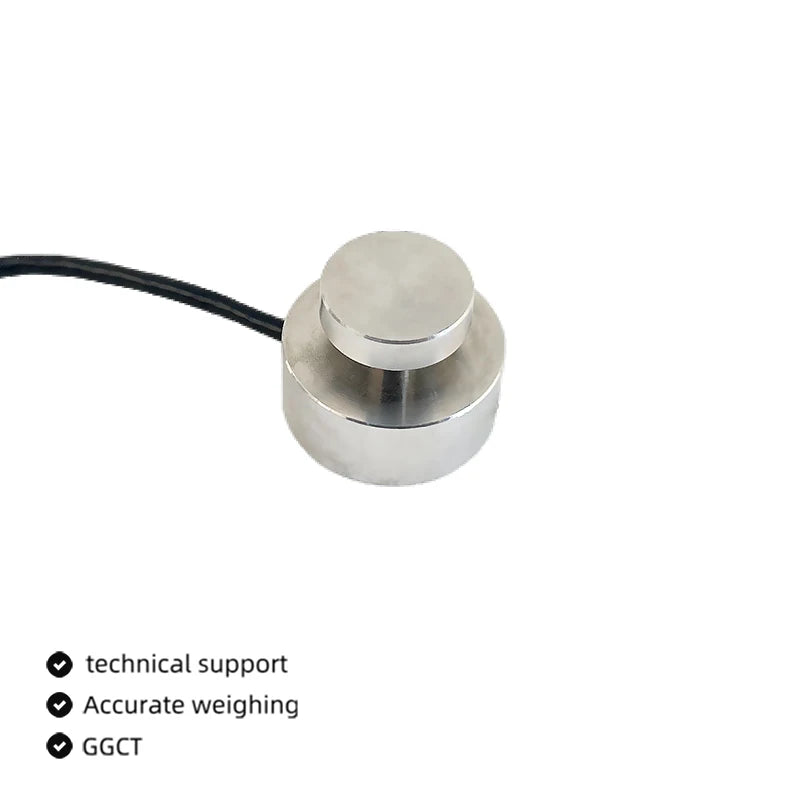

30mm Inline Miniature compression and tension load cell impact force measurement Weighing Sensor for Robot Industrial Testing

Technical parameters

Rated load

100kg-1000kg

0utput sensitivity

1.5±10% mV/V

Non-linearity

±0.5 %F.S

Lagerror

±0.5 %F.S

Repeatability

±0.3 %F.S

Creep

±0.3 %F.S

Zero temperature coefficient

±0.1 %F.S/10℃

Sensitivity temperature coefficient

±0.1 %F.S/10℃

Input resistance

1000±30Ω

Output resistance

1000±5Ω

Working temperature range

-20℃'+70℃

Safe overload

150 %F.S

Insulationresistance

≥2000MΩ

Incentive voltage

5V-12V

Protection class

IP66
