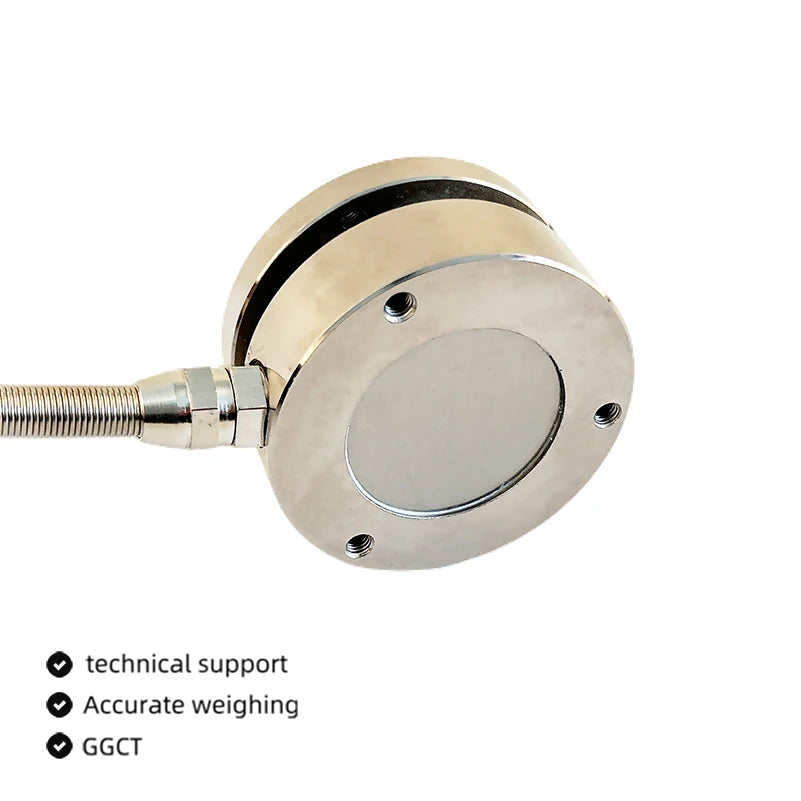

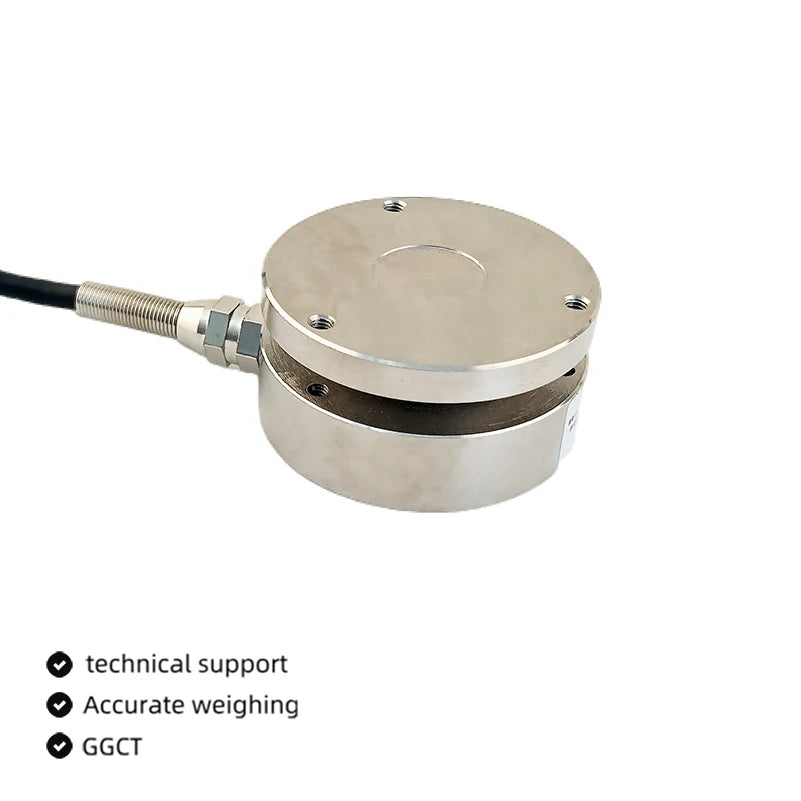

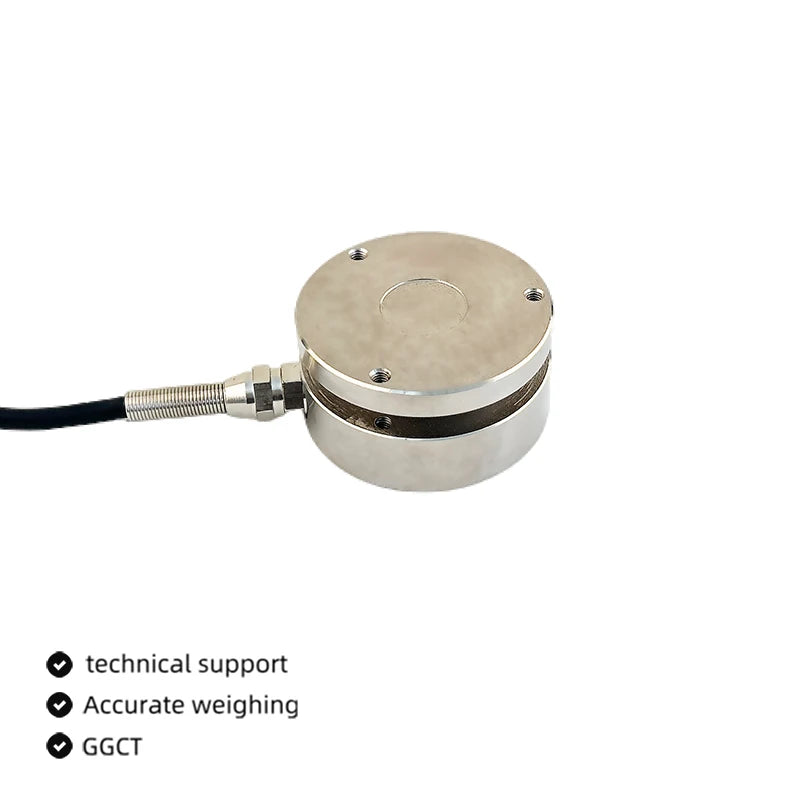

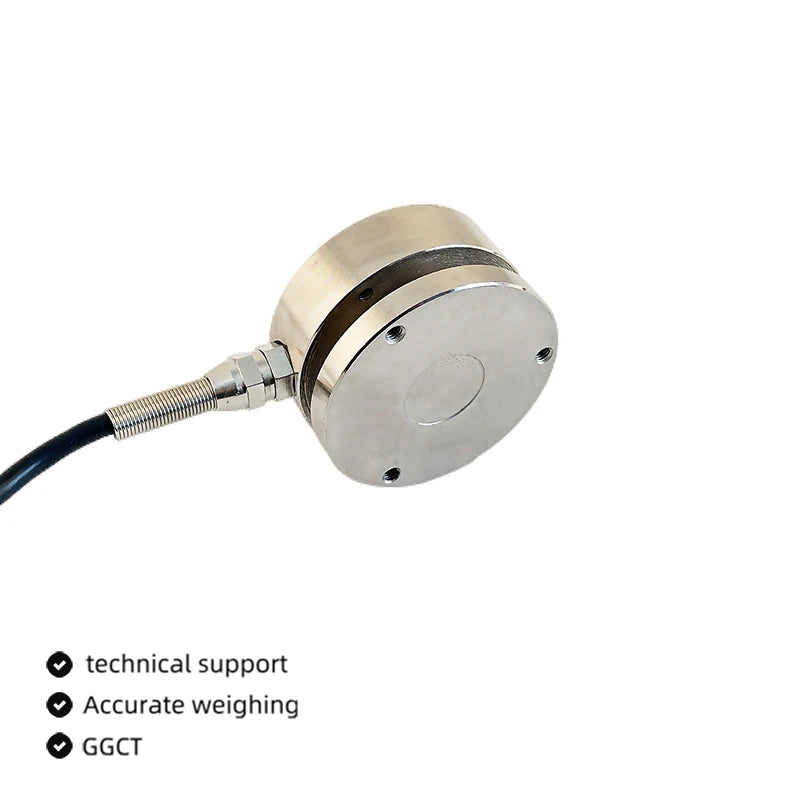

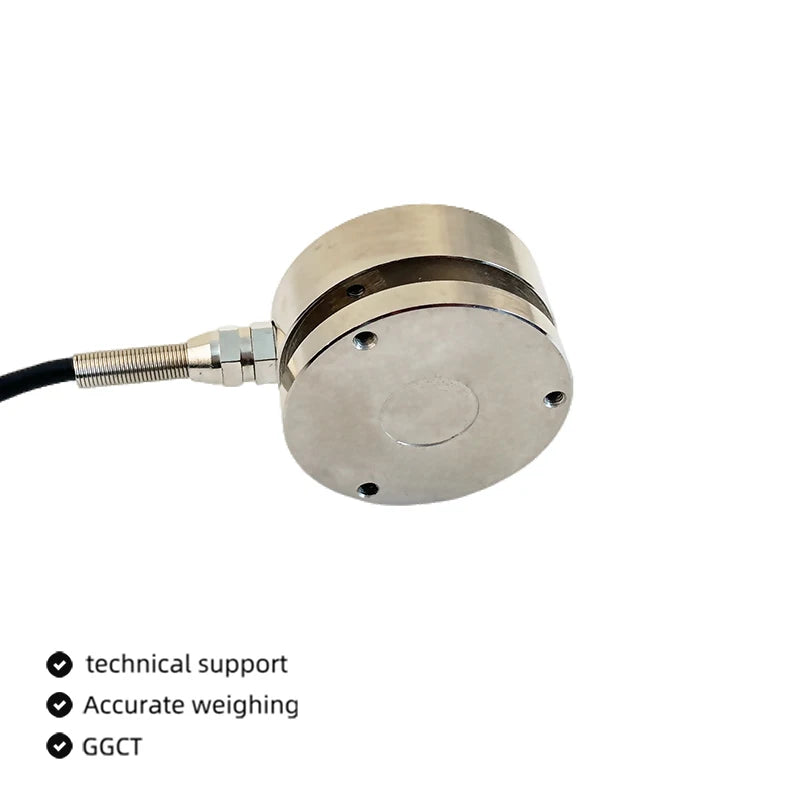

58mm High-Precision Inline Load Cell Miniature Compression and Tension Load Cell for Impact Force Measurement Industrial Testing
58mm High-Precision Inline Load Cell Miniature Compression and Tension Load Cell for Impact Force Measurement Industrial Testing
Regular price
$61.07 USD
Regular price
$0.00 USD
Sale price
$61.07 USD
Unit price
per
Couldn't load pickup availability
| Technicalparameters |
|
| Capacity |
0-2T |
| Rated Output |
1.0-2.0±0.05mV/V |
| Zero Balance |
±1%F.S. |
| Non-Linearity |
0.5%F.S. |
| Hysteresis |
0.3%F.S. |
| Repeatability |
0.3%F.S. |
| Creep(30min) |
0.1%F.S. |
| Temp Effect on Output |
0.1%F.S./10℃ |
| Temp Effecton Zero |
0.1%F.S./10℃ |
| Response frequency |
10kHz |
| lmpedance |
350Ω |
| Insulation |
>5000MQ/100VDC |
| OperatingTemp Range |
5-10V |
| 0peratingTemp Range |
-20-80°C |
| Safe Overload |
120% |
| Maximum Overload |
150% |
