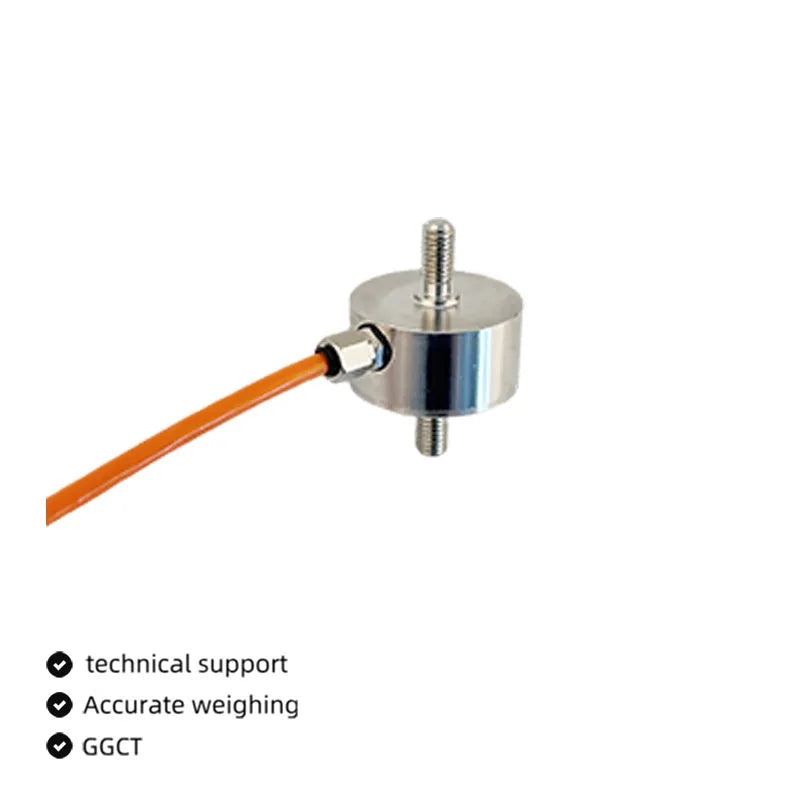

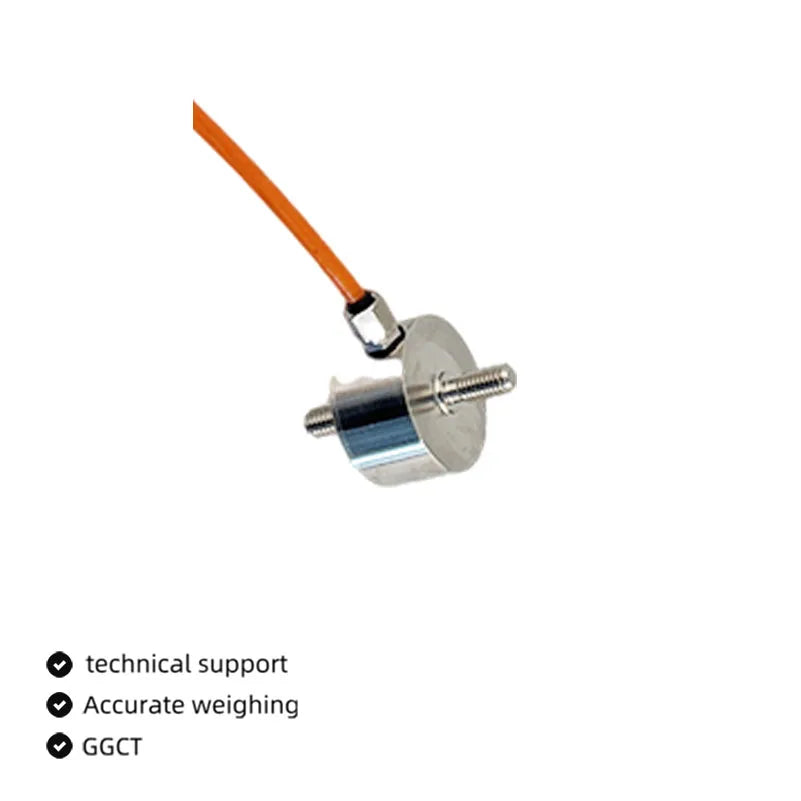

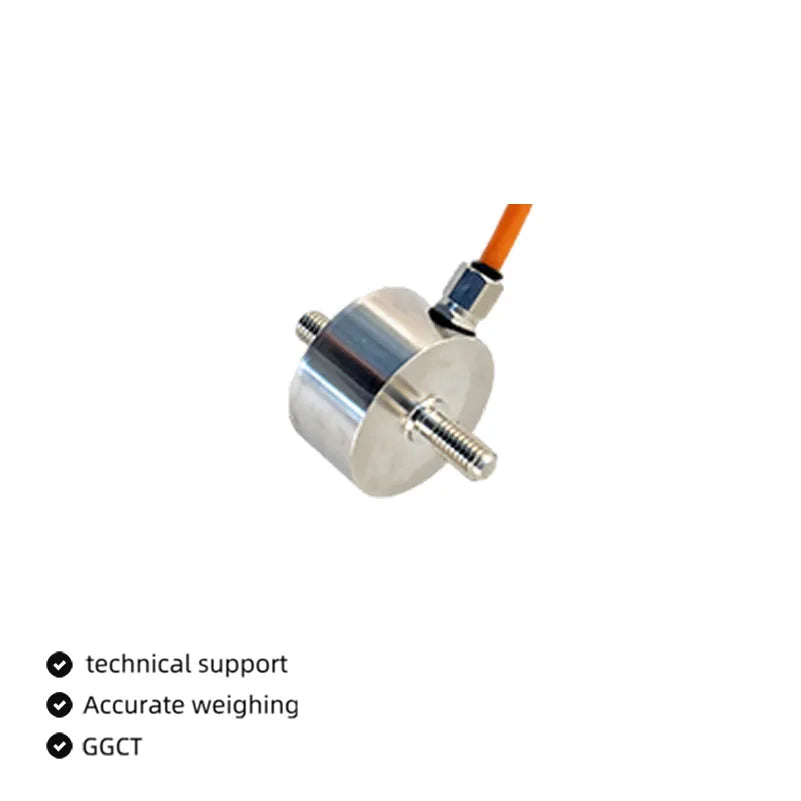

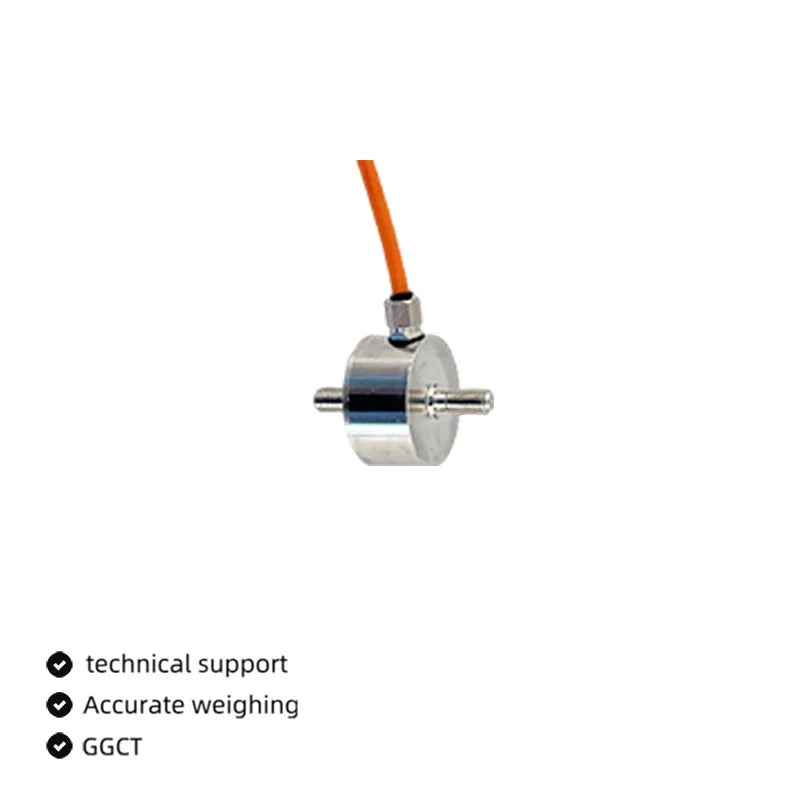

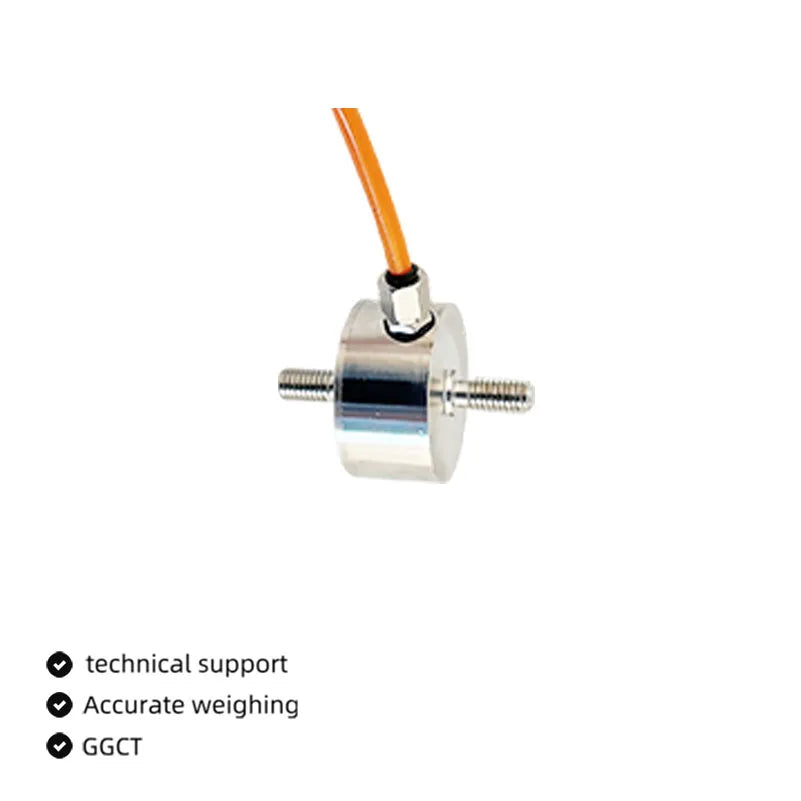

Double Bolt Force Weighing Sensor Mini Load Cell 200kg Screw for Hopper Scale Robot Compression Tension Industrial Testing

Technical Parameter

Rated load0~500kg

0utput sensitivity1.0-1.5±10% mV/V

Non-linearity±0.3 %F·S

Lag error±0.1 %F·S

Repeatability±0.1 %F·S

Creep±0.2 %F·S

Zero temperature coefficient0.1 %F·S/10℃

Sensitivity temperature coefficient0.1 %F·S/10℃

Response frequency10kHZ

Impedance350Ω

Working temperature-20℃~+80℃

Safe overload150 %F'S

Insulation resistance≥5000MΩ/100VDC

Incentive voltage0V~10V

Materialstainless steel

CableФ 3 x2M
